Cobra Marine MR F75 EU
VHF Marine Band Fixed Transceiver
Overview:
- Two power levels: 1W and 25W
- Large, high contrast LCD screen
- Digital Selective Calling (DSC) capable (MMSI required)
- GPS compatible (includes cable to connect to a GPS module with NMEA output)
- Public address (PA) function (speak to an external speaker on the deck)
- Waterproof
- White and black versions
- New in box
- With flush mount and surface mount hardware.
For Sale!!!
Ebay listings:
https://www.ebay.fr/itm/154128204480
This radio is a VHF transceiver for fixed mounting on your boat.
It gives you 2-way vessel-to-vessel and vessel-to-shore station communications, primarily for safety and secondarily for navigation and operational purposes. With it, you can call for help, get information from other boaters, talk to lock or bridge tenders, and make radiotelephone calls to anywhere in the world through a marine operator.
Besides 2-way communications, in the U.S.A., the radio can provide quick access to receive all ten (10) NOAA (National Oceanographic and Atmospheric Administration) weather channels and alert you to weather emergencies with a tone on a weather channel you can select for your area.

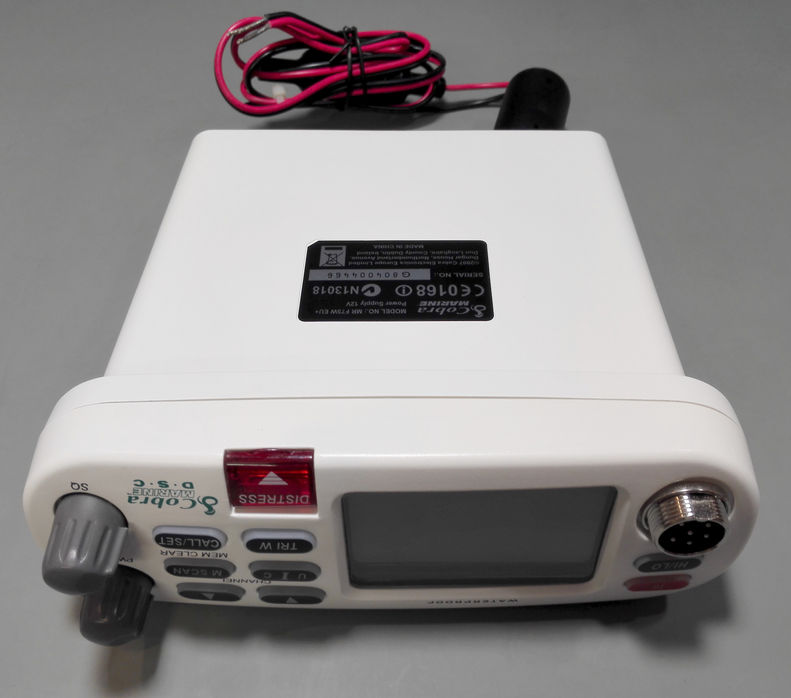

In stock we have the black and the white versions of this radio. The black equipment has a small defect in the last line of the GPS coordinates (see pictures), but the digits can still be read. This should not affect the operation of the equipment.
The transceivers are new, in box, with the original accessories:
- Flush Mount Kit
- Surface Mount Kit
- Microphone/Speaker
- Microphone/Speaker Mounting Kit
- Operating Instruction Manual
- GPS Interface Cable
Original Specifications:
GENERAL:
Number of Channels:
All U.S.A., Canadian and International Channels
10 NOAA Weather Channels
Channel Spacing
25 kHz
Modulation:
5 kHz Max.
Input Voltage:
13.8 VDC
Current Drain
Stand-by: 20 mA
Receive: 200 mA
Transmit: 5 A (High Power), 1 A (Low Power)
Temperature Range:
-20 ºC to 60 ºC
Transceiver Diemsions:
15.9 cm x 5.7 cm x 18 cm
Transceiver Weight:
1.1 kg
RECEIVER:
Frequency Range:
156.050 to 163.275 MHz
Receiver Type:
Double Conversion Super-Heterodyne
Sensitivity:
20dB quieting: 0.35 uV
12 dB SINAD: 0.30 uV
Adjacent Channel Selectivity:
-60 dB
Intermodulation and Rejection:
-60dB
Spurious and Image Rejection Ratio:
-60 dB
AF Output:
4 Watt @ 8 Ohm
TRANSMITTER:
Frequency Range:
156.025 to 157.425 MHz
RF Output Power:
1 and 25 Watt (2 selectable levels, low or high)
Spurious Emissions:
-60dB High, -55 dB Low
Microphone Type:
Electret
Frequency Stability:
+- 10 ppm
FM Hum and Noise:
40 dB
